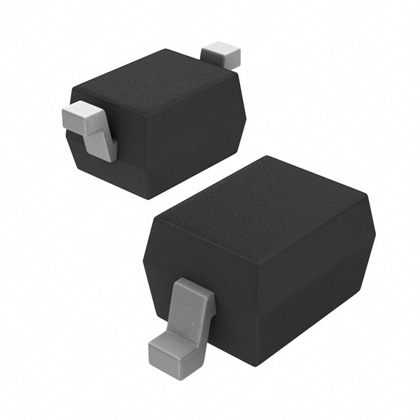

DIODE GEN PURP 75V 150MA SOD323
The 1N4148WS-7-F is a silicon epitaxial Planar Diode for general purpose switching applications. This article will cover its pinout, datasheet, application, equivalent and more details about 1N4148WS-7-F.
1N4148WS-7-F Diode: Datasheet, Equivalent, Pinout [FAQ]
Adair Toland |
29/04 |
1N4148WS-7-F
In Stock
:
103849 Min. : 1
Mult. :
Mult. :
Not available to buy on line? Want the lower wholesale price? Please
sendRFQ, we will
respond immediately
Quick Links

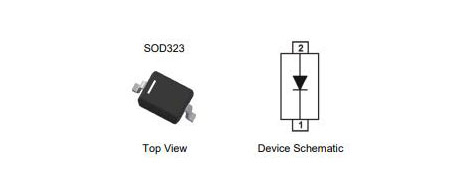

1N4148WS-7-F Pinout
1N4148WS-7-F Pinout
1N4148WS-7-F CAD Model

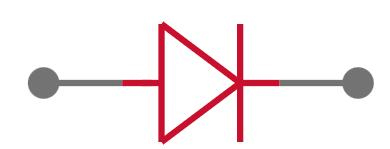

Symbol
1N4148WS-7-F Symbol

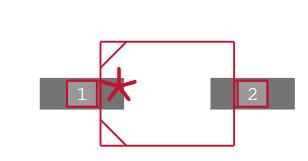

Footprint
1N4148WS-7-F Footprint
3D Model
1N4148WS-7-F 3D Model
1N4148WS-7-F Description
The 1N4148WS-7-F is a surface mount silicon epitaxial planar fast Switching Diode for general purpose switching, high-speed switching applications. It is ideally suited for automatic insertion. 75V DC Reverse voltage. -65 to 150°C Junction and storage temperature range.
1N4148WS-7-F Feature
Small Surface Mount Package
For General Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)sertion. 75V DC Reverse voltage
-65 to 150°C Junction and storage temperature range.
1N4148WS-7-F Equivalent
The equivalent for 1N4148WS-7-F:
-
1N4448WS
-
1N4448W
-
1N4448
-
1N4148WS
-
1N4148W

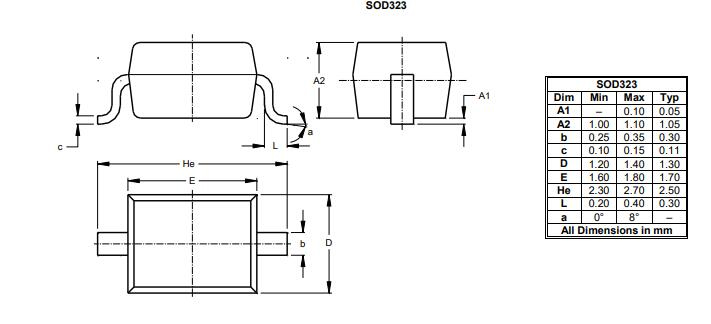

1N4148WS-7-F Package
1N4148WS-7-F Package
1N4148WS-7-F Manufacturer
Diodes Incorporated delivers high-quality semiconductor products to the world’s leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analogue, and mixed-signal products and leading-edge packaging technology to meet customers’ needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Specifications
Diodes Incorporated 1N4148WS-7-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated 1N4148WS-7-F.
| Attribute | Value |
|---|---|
| Factory Lead Time | 17 Weeks |
| Contact Plating | Tin |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Number of Pins | 2 |
| Weight | 4.904468mg |
| Diode Element Material | SILICON |
| Number of Elements | 1 |
| Packaging | Tape & Reel (TR) |
| Published | 2012 |
| JESD-609 Code | e3 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 2 |
| ECCN Code | EAR99 |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Additional Feature | HIGH RELIABILITY |
| HTS Code | 8541.10.00.70 |
| Capacitance | 2pF |
| Power Rating | 200mW |
| Voltage - Rated DC | 75V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Current Rating | 150mA |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Base Part Number | 1N4148WS |
| Attribute | Value |
|---|---|
| Pin Count | 2 |
| Voltage | 75V |
| Element Configuration | Single |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Current | 2A |
| Diode Type | Standard |
| Current - Reverse Leakage @ Vr | 1μA @ 75V |
| Power Dissipation | 200mW |
| Output Current | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA |
| Forward Current | 150mA |
| Operating Temperature - Junction | -65°C~150°C |
| Max Surge Current | 2A |
| Forward Voltage | 1.25V |
| Max Reverse Voltage (DC) | 75V |
| Average Rectified Current | 150mA |
| Reverse Recovery Time | 4 ns |
| Peak Reverse Current | 1μA |
| Max Repetitive Reverse Voltage (Vrrm) | 75V |
| Capacitance @ Vr, F | 2pF @ 0V 1MHz |
| Peak Non-Repetitive Surge Current | 2A |
| Max Forward Surge Current (Ifsm) | 2A |
| Recovery Time | 4 ns |
| Height | 1mm |
| Length | 1.8mm |
| Width | 1.4mm |
| REACH SVHC | No SVHC |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
Datasheet PDF
Download datasheets and manufacturer documentation for Diodes Incorporated 1N4148WS-7-F.
Documents
Download datasheets and manufacturer documentation for
Environmental Information
Diodes RoHS 3 CertPCN Design/Specification
Green Encapsulate 29/Aug/2008 Bond Wire 16/Sept/2008Datasheets
1N4148WS, BAV16WS DatasheetPCN Assembly/Origin
Assembly Site Add/Bond Wire Update 22/Nov/2016
Frequently Asked Questions
FAQ
Are all 1N4148 diodes the same?
The 1N4148 superseded the earlier 1N914 as the most common mass-produced switching diode. They largely differed in their leakage current parameters; however, most manufacturers now publish common specs. Vishay, for example, lists the same leakage current for both parts: At -20 V and 25°C, the current is 25 nA.
What is the Schottky diode and how it works?
In a Schottky diode, a semiconductor–metal junction is formed between a semiconductor and a metal, thus creating a Schottky barrier. The N-type semiconductor acts as the cathode and the metal side acts as the anode of the diode. This Schottky barrier results in both a low forward voltage drop and very fast switching.
What is the surface mount of the 1N4148WS-7-F?
Silicon epitaxial planar fast Switching Diode.
What is the temperature range of the 1N4148WS-7-F?
-65 to 150°C Junction and storage temperature range.
