2N5486 is an N channel JFET transistor of the 2N548x series. This article will unlock its datasheet, equivalent, pinout, and more details about 2N5486.
2N5486 Transistor: 2N5486 vs. MPF102, Equivalent, Datasheet
Odelia Sapir |
21/04 |
2N5486
In Stock
:
2880 Min. : 1
Mult. :
Mult. :
Not available to buy on line? Want the lower wholesale price? Please
sendRFQ, we will
respond immediately
Quick Links

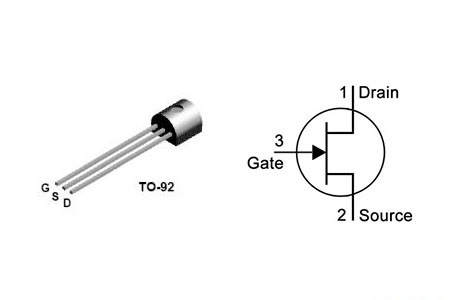

2N5486 Pinout
2N5486 Pinout.jpg
2N5486 CAD Model

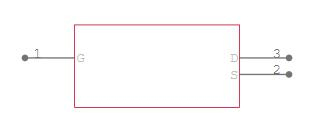

Symbol
2N5486 Symbol
Footprint
2N5486 Footprint
3D Model
2N5486 3D Model
What is 2N5486?
2N5486 is a 2N548x series N channel JFET transistor. TO-92 and SOT-23 packages are used to manufacture these transistors. 2N5486, like the other transistors in this series, is primarily intended for VHF and UHF applications. However, it is not confined to VHF and UHF applications and can be utilized for a variety of other purposes. The transistor has a lot of intriguing qualities that make it excellent for a wide range of applications.
How to Use 2N5486?
2N5486 can be found in a wide range of applications, including signal amplifiers, oscillators, mixers, VHF and UHF applications, audio amplification, switching, and high-speed switching.
How to Use 2N5486 in Safety?
To use the 2N5486 transistor securely, do not use it at its exact maximum ratings, but rather 20 percent below. Because the maximum gate current is 10mA, do not drive loads more than 8mA. Because the maximum gate to source voltage is 25V, do not drive loads more than 20V and always store or operate the transistor at temperatures greater than -55°C and less than +150 °C.
2N5486 Feature
-
N Channel JFET transistor.
-
The maximum drain-to-gate voltage is 25 volts.
-
Maximum Voltage from Reverse Gate to Source: 25V.
-
10mA is the maximum continuous gate current.
-
–2 to –6V is the minimum to the maximum gate to source cutoff voltage.
-
350mW is the maximum power dissipation.
-
The maximum storage and operating temperatures should be between -55 and +150 °C.
-
Capabilities for Low Noise and High Gain
2N5486 Equivalent
The equivalent for 2N5486:
2N5638
2N5640
2SK147
2SK223
BF244
J106
J107
J109
MPF102

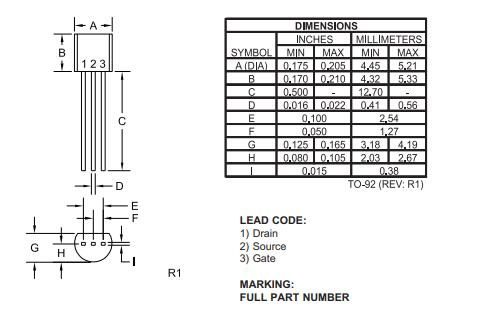

2N5486 Package
2N5486 Package
2N5486 Manufacturer
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centres in key markets throughout North America, Europe, and the Asia Pacific regions.
Datasheet PDF
Documents
Download datasheets and manufacturer documentation for
PCN Obsolescence/ EOL
Multiple Devices 30/Jun/2006Datasheets
2N5484/5485/5486 MMBF5484/5485/5486 2N5486ReachStatement
Fairchild-Semiconductor-company-9.pdf
Specifications
ON Semiconductor 2N5486 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N5486.
| Attribute | Value |
|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 2 days ago) |
| Mount | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Number of Pins | 3 |
| Weight | 201mg |
| Breakdown Voltage / V | -25V |
| Number of Elements | 1 |
| Packaging | Bulk |
| Published | 2006 |
| JESD-609 Code | e0 |
| Pbfree Code | no |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 3 |
| Termination | Through Hole |
| ECCN Code | EAR99 |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Voltage - Rated DC | 25V |
| Current Rating (Amps) | 30mA |
| Max Power Dissipation | 350mW |
| Terminal Position | BOTTOM |
| Peak Reflow Temperature (Cel) | 240 |
| Current Rating | 10mA |
| Attribute | Value |
|---|---|
| Frequency | 400MHz |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Base Part Number | 2N5486 |
| Pin Count | 3 |
| Element Configuration | Single |
| Operating Mode | DEPLETION MODE |
| Power Dissipation | 350mW |
| Transistor Application | AMPLIFIER |
| Drain to Source Voltage (Vdss) | 25V |
| Transistor Type | N-Channel JFET |
| Continuous Drain Current (ID) | 20mA |
| Gate to Source Voltage (Vgs) | 25V |
| Input Capacitance | 5pF |
| FET Technology | JUNCTION |
| Noise Figure | 4 dB |
| Feedback Cap-Max (Crss) | 1 pF |
| Test Voltage | 15V |
| Power Gain-Min (Gp) | 10dB |
| Height | 5.33mm |
| Length | 5.2mm |
| Width | 4.19mm |
| REACH SVHC | No SVHC |
| Radiation Hardening | No |
| RoHS Status | Non-RoHS Compliant |
| Lead Free | Lead Free |
Frequently Asked Questions
FAQ
What packages are used to manufacture 2N5486 transistors?
TO-92 and SOT-23.
What types of applications is the 2N5486 primarily intended for?
VHF and UHF applications.
What qualities does the 2N5486 transistor have?
Intriguing qualities.
What is the maximum gate current of 2N5486?
10mA.
What is the maximum gate to source voltage of 2N5486?
25V.
