CD4017BE is 5-stage Johnson counter having 10 decoded outputs, respectively. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. The counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
The following figure is the diagram of CD4017BE Pinout.
Pinout
The followings are CD4017BE Symbol, Footprint, and 3D Model.
Symbol
Footprint
3D Model
CD4017B and CD4022B are 5-stage and 4-stage Johnson counters having 10 and 8 decoded outputs, respectively. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. Schmitt trigger action in the CLOCK input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times.
These counters are advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Counter advancement via the clock line is inhibited when the CLOCK INHIBIT signal is high. A high RESET signal clears the counter to its zero count. Use of the Johnson counter configuration permits high-speed operation, 2-input decode-gating, and spike-free decoded outputs. Anti-lock gating is provided, thus assuring proper counting sequence. The decoded output is normally low and go high only at their respective decoded time slot. Each decoded output remains high for one full clock cycle. A CARRY-OUT signal completes on cycle every 10 clock input cycles in the CD4017B or every 8 clock input cycles in the CD4022B and is used to ripple-clock the succeeding device in a multi-device counting chain.
The CD4017B and CD4022B types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic package (E suffix), 16-lead small-outline packages (NSR suffix), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). The CD4017B types also are supplied in 16-lead small-outline packages (M and M96 suffixes).
This article will introduce CD4017BE systematically from its features, pinout to its specifications, applications, also including CD4017BE datasheet and so much more.
● Fully static operation
● Medium-speed operntion...10 MHz (typ.)st Vop- 10V
● Standardized, symmtrical output characteristics
● 100% tested for quiescent current at 20 V
● 5-V, 10-V, and 15-V parametric ratings
● Meets all requirement of JEDEC Tentative Standard No. 13A, "Standard Specifications for Description of ‘B' Seriet CMOS Devices"
Rochester Electronics, LLC CD4017BE technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC CD4017BE.
| Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300, 7.62mm) |
| Surface Mount | NO |
| Number of Elements | 1 |
| Operating Temperature | -55°C~125°C |
| Packaging | Tube |
| Series | 4000B |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 16 |
| Voltage - Supply | 3V~18V |
| Terminal Position | DUAL |
| Attribute | Value |
|---|---|
| Number of Functions | 1 |
| Supply Voltage | 5V |
| Qualification Status | Not Qualified |
| Supply Voltage-Min (Vsup) | 3V |
| Reset | Asynchronous |
| Direction | Up |
| Logic Type | Counter, Decade |
| Number of Bits per Element | 10 |
| Trigger Type | Positive Edge |
| Count Rate | 5.5MHz |
| Timing | Synchronous |
| RoHS Status | Non-RoHS Compliant |
● Decade counter/decimal decode display
● Binary counter/decoder
● Frequency division
● Counter control/timers
● Divide-by-N counting
● For further application information,see ICAN-6166 “COS/MOS MSI Counter and Register Derign and Applications"

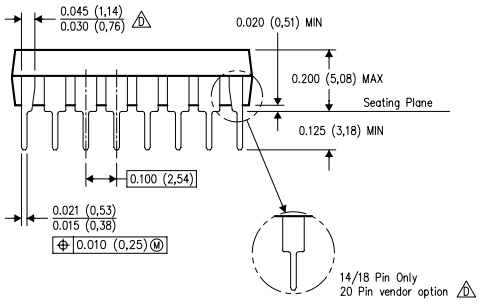

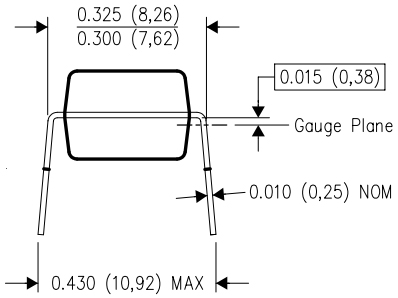

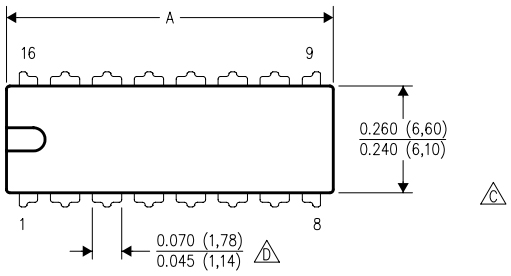

The following diagrams show the CD4017BE Package.
View A
View B
View C
Rochester Electronics is the largest continuing source manufacturer of semiconductors in the world. With product licensing from leading manufacturers such as Analog Devices, Altera, Cypress, Fairchild, Freescale, Infineon, Intel, NXP, Renesas and Texas Instruments, Rochester continues to manufacture and distribute mature products. For industrial, transportation and hi-reliability markets, this extension of product life is critical for long term production and maintenance. With over 100,000 products and 15 billion units in stock, no other company compares to our selection, capabilities or solutions.
