LM324D is a low-power quad operational amplifier. This blog mainly introduces pinout, specifications, applications, and other detailed information about STMicroelectronics LM324D.
LM324D Operational Amplifier: Pinout, Features and Datasheet Alan
Toby |
01/02 |
LM324D
In Stock
:
4563 Min. : 1
Mult. :
Mult. :
Not available to buy on line? Want the lower wholesale price? Please
sendRFQ, we will
respond immediately
Quick Links
LM324D Description
The LM324x consists of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages.
Operation from split power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.

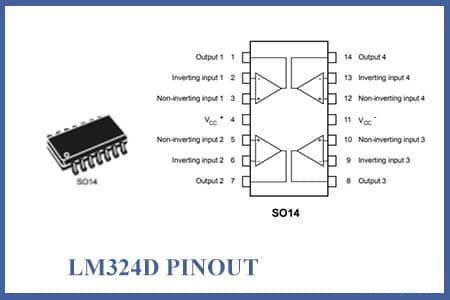

LM324D Pinout
LM324D CAD model
PCB Symbol - STMicroelectronics LM324D

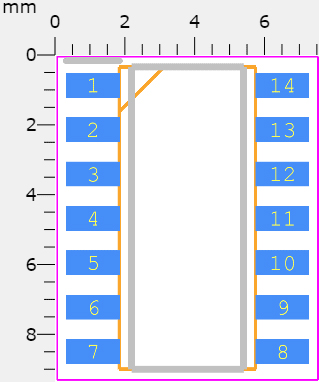

PCB Footprint - STMicroelectronics LM324D

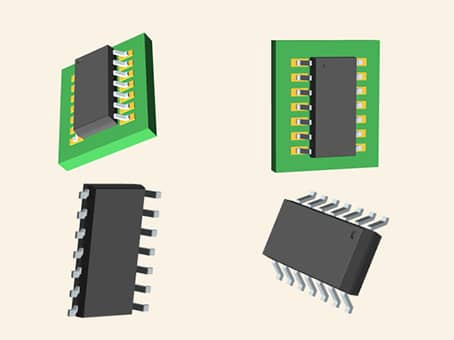

3D Model - STMicroelectronics LM324D
LM324D Features
• Wide gain bandwidth: 1.3 MHz
• Input common-mode voltage range includes ground
• Large voltage gain: 100 dB
• Very low supply current/amplifier: 375 µA
• Low input bias current: 20 nA
• Low input voltage: 3 mV max.
• Low input offset current: 2 nA
• Wide power supply range:
– Single supply: 3 V to 30 V
– Dual supplies: ±1.5 V to ±15 V
Specifications
STMicroelectronics LM324D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM324D.
| Attribute | Value |
|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Factory Lead Time | 6 Weeks |
| Contact Plating | Gold |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) |
| Number of Pins | 14 |
| Operating Temperature | 0°C~70°C |
| Packaging | Tube |
| JESD-609 Code | e4 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 14 |
| ECCN Code | EAR99 |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Number of Functions | 4 |
| Supply Voltage | 5V |
| Terminal Pitch | 1.27mm |
| Base Part Number | LM324 |
| Pin Count | 14 |
| Operating Supply Voltage | 16V |
| Power Supplies | +-1.5/+-16/3/32V |
| Number of Channels | 4 |
| Operating Supply Current | 1.4mA |
| Nominal Supply Current | 3mA |
| Output Current | 30mA |
| Slew Rate | 0.5V/μs |
| Attribute | Value |
|---|---|
| Architecture | VOLTAGE-FEEDBACK |
| Amplifier Type | General Purpose |
| Common Mode Rejection Ratio | 65 dB |
| Current - Input Bias | 20nA |
| Voltage - Supply, Single/Dual (±) | 3V~32V ±1.5V~16V |
| Output Current per Channel | 60mA |
| Input Offset Voltage (Vos) | 7mV |
| Unity Gain BW-Nom | 1200 kHz |
| Voltage Gain | 100dB |
| Average Bias Current-Max (IIB) | 0.5μA |
| Low-Offset | NO |
| Frequency Compensation | YES |
| Supply Voltage Limit-Max | 32V |
| Voltage - Input Offset | 3mV |
| Low-Bias | NO |
| Micropower | YES |
| Bias Current-Max (IIB) @25C | 0.25μA |
| Programmable Power | NO |
| Dual Supply Voltage | 9V |
| Power | NO |
| Input Offset Current-Max (IIO) | 0.15μA |
| Height | 1.75mm |
| Length | 8.65mm |
| Width | 3.91mm |
| Thickness | 1.58mm |
| REACH SVHC | No SVHC |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
LM324D Alternative
|
Part Number |
Description |
Manufacturer |
|
LM324DT AMPLIFIER CIRCUITS |
Low power, low input bias current |
STMicroelectronics |

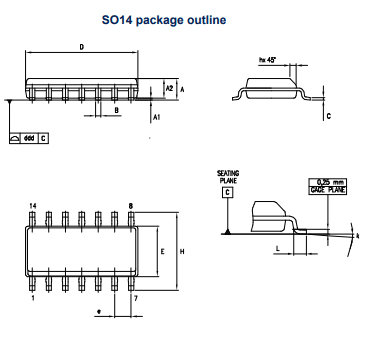

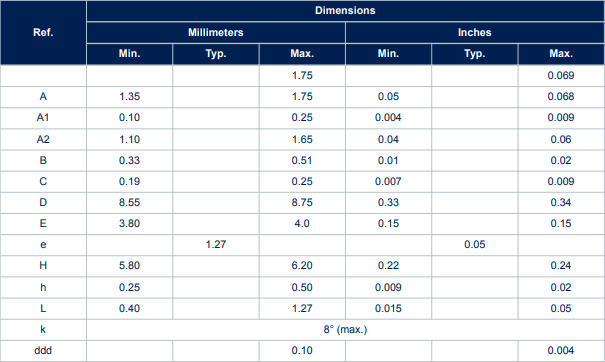

LM324D Package
LM324D Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics LM324D.
Documents
Download datasheets and manufacturer documentation for
PCN Design/Specification
Mult Devices Font 21/Apr/2018 Mult Devices Font 21/Apr/2018
Frequently Asked Questions
FAQ
1.What is the difference between LM324 and LM324D?
In fact, they are all LM324 operational amplifiers. The difference is that LM324D specifies the package of the device.
2.What is the difference between LM324N and LM324D?
There is only a difference in packaging, LM324N is in-line package, DIP14, and LM324D is SMD package, SO14, nothing more.
3.Is the performance of LP324D and LM324D the same?
Their pins are compatible. Under the same working voltage, the output voltage range of LM324 is slightly wider than that of LP324, and the accuracy of LP324 is slightly higher than that of LM324, but they are not much different and can be used instead.
4.What is the difference between LM324 and LM258D?
LM324 is a low-power four operational amplifier. LM258D low-power dual operational amplifier. The characteristic parameters of the two circuits are basically the same. LM324 does not indicate the package form, and it does not indicate that it is basically a dual in-line package. The LM258D package is a sticker Chip package. The operating temperature range of LM324 is 0 degrees-70 degrees, and the operating temperature range of LM258D is -25 degrees-+85 degrees.
