What Is EEPROM?
EEPROM Serial-I2C 128K-bit 16K x 8 1.8V/2.5V/3.3V/5V 8-Pin SO N T/R
The M24128-DF is a 128-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 K × 8 bits. The M24128-DF can operate with a supply voltage from 1.7 V to 5.5 V. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
The following figure is the diagram of M24128-DF Pinout.
Pinout
The followings are M24128-DF Symbol and Footprint.
Symbol

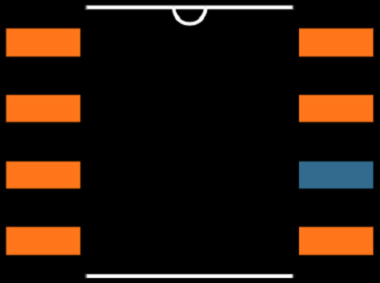

Footprint
The M24128 is a 128-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 K × 8 bits. The M24128-DF can operate with a supply voltage from 1.7 V to 5.5 V. The device operates with a clock frequency of 1 MHz (or less), over an ambient temperature range of –40 °C / +85 °C. The M24128-D offers an additional page, named the Identification Page (64 byte). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
This article provides you with a basic overview of the M24128-DF 128-Kbit serial I²C bus EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M24128-DF is.
● Compatible with all I²C bus modes:
◆ 1 MHz
◆ 400 kHz
◆ 100 kHz
● Memory array:
◆ 128 Kbit (16 Kbyte) of EEPROM
◆ Page size: 64 byte
◆ Additional Write lockable page (M24128-D order codes)
● Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
● Write:
◆ Byte Write within 5 ms
◆ Page Write within 5 ms
● Operating temperature range: from -40 °C up to +85 °C
● Random and sequential Read modes
● Write protect of the whole memory array
● Enhanced ESD/Latch-Up protection
● More than 4 million Write cycles
● More than 200-years data retention
STMicroelectronics M24128-DFMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24128-DFMN6TP.
| Attribute | Value |
|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) |
| Factory Lead Time | 13 Weeks |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) |
| Number of Pins | 8 |
| Memory Types | Non-Volatile |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tape & Reel (TR) |
| JESD-609 Code | e4 |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 8 |
| ECCN Code | EAR99 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Voltage - Supply | 1.7V~5.5V |
| Terminal Position | DUAL |
| Peak Reflow Temperature (Cel) | 260 |
| Number of Functions | 1 |
| Terminal Pitch | 1.27mm |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Base Part Number | M24128 |
| Qualification Status | Not Qualified |
| Supply Voltage-Max (Vsup) | 5.5V |
| Attribute | Value |
|---|---|
| Supply Voltage-Min (Vsup) | 1.7V |
| Interface | 2-Wire, I2C, Serial |
| Memory Size | 128Kb 16K x 8 |
| Nominal Supply Current | 2mA |
| Operating Mode | SYNCHRONOUS |
| Clock Frequency | 1MHz |
| Access Time | 450ns |
| Memory Format | EEPROM |
| Memory Interface | I2C |
| Memory Width | 8 |
| Write Cycle Time - Word, Page | 5ms |
| Density | 128 kb |
| Standby Current-Max | 0.000001A |
| Serial Bus Type | I2C |
| Endurance | 4000000 Write/Erase Cycles |
| Write Cycle Time-Max (tWC) | 5ms |
| Data Retention Time-Min | 200 |
| Write Protection | HARDWARE |
| I2C Control Byte | 1010DDDR |
| Length | 4.9mm |
| Height Seated (Max) | 1.75mm |
| Width | 3.9mm |
| RoHS Status | ROHS3 Compliant |
The following is the Block Diagram of M24128-DF.
Block diagram
The following is the Logic Diagram of M24128-DF.
Logic diagram
| Model number | Manufacturer | Description |
| M24128-DFMN6P | STMicroelectronics | 16K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ANTIMONY AND HALOGEN FREE, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M24128-DFMN6TG | STMicroelectronics | 16K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ANTIMONY AND HALOGEN FREE, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M24128-DFMN6G | STMicroelectronics | 16K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ANTIMONY AND HALOGEN FREE, ROHS COMPLIANT, PLASTIC, SOP-8 |

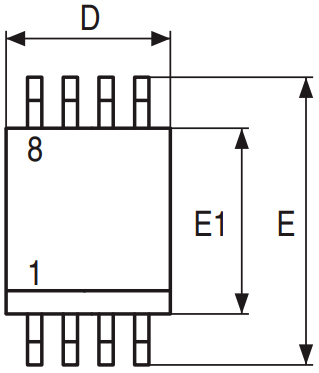

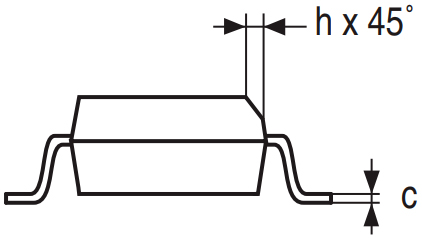

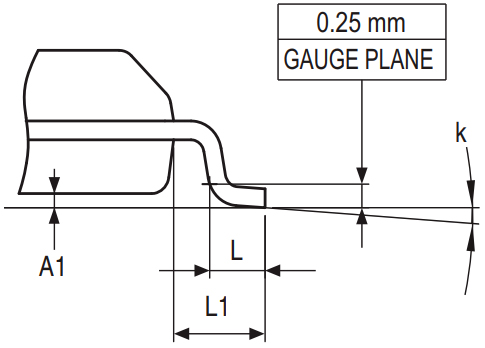

The following diagrams show the M24128-DF Package.
View A
View B
View C
View D
The following diagram shows the M24128-DF Package Recommended Footprint.
Package Recommended Footprint
