P6KE Series 600 W 33 V Uni-Directional Axial TVS Diode - DO-204AC
The P6KE33A Series was created to safeguard sensitive electronic equipment against voltage transients such as those caused by lightning and other transient voltage events. This article mainly introduces System, Pinout, Datasheet and other detailed information about STMicroelectronics P6KE33A.
The P6KE33A Series was created to safeguard sensitive electronic equipment against voltage transients such as those caused by lightning and other transient voltage events.
The P6KE33A is a transient voltage surge suppressor (TVS). Transil diodes clamp to prevent against extreme overvoltage. They're well-suited to protecting voltage-sensitive devices like MOS Technology and low-voltage-supplied ICs because of their quick response to transient overvoltages.

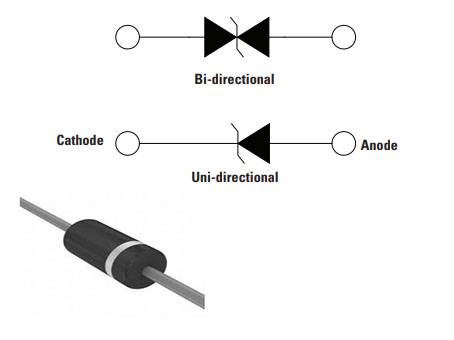

The following figure is P6KE33A Pinout.
Pinout
The P6KE33A CAD Model is shown as follows.
Symbol

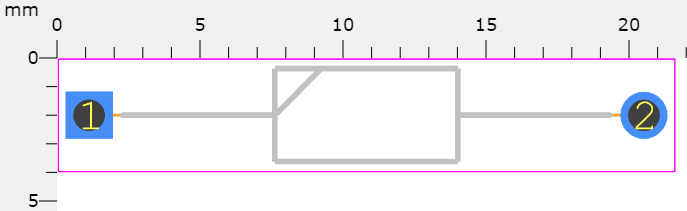

Footprint

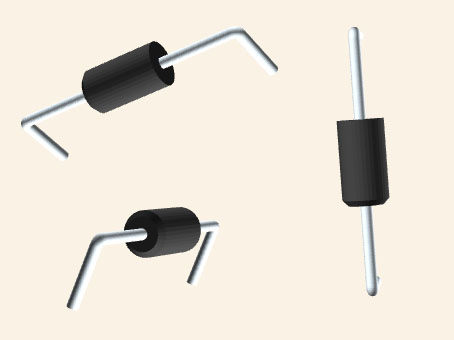

3D Model
■ Peak pulse power: 600 W (10/1000 µs )
■ Stand-off voltage range 6.8 to 440 V
■ Unidirectional and bidirectional types
■ Low clamping factor
■ Fast response time
■ UL recognized
Complies with the Following Standards
■ IEC 61000-4-2 level 4
– 15 kV (air discharge)
– 8 kV (contact discharge)
■ MIL STD 883G, method 3015-7 Class 3
– HBM (human body model)
STMicroelectronics P6KE33A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics P6KE33A.
| Attribute | Value |
|---|---|
| Mount | Through Hole |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Number of Pins | 2 |
| Diode Element Material | SILICON |
| Breakdown Voltage / V | 31.4V |
| Number of Elements | 1 |
| Reverse Stand-off Voltage | 28V |
| Packaging | Tape & Box (TB) |
| Series | P6KE, TRANSIL™ |
| JESD-609 Code | e3 |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 2 |
| ECCN Code | EAR99 |
| Type | Zener |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Applications | General Purpose |
| Additional Feature | UL RECOGNIZED |
| Power Rating | 600W |
| Voltage - Rated DC | 33V |
| Terminal Form | WIRE |
| Base Part Number | P6KE |
| Pin Count | 2 |
| Attribute | Value |
|---|---|
| Operating Supply Voltage | 28.2V |
| Leakage Current | 500nA |
| Element Configuration | Single |
| Power Dissipation | 5W |
| Case Connection | ISOLATED |
| Power Line Protection | No |
| Current - Peak Pulse (10/1000μs) | 68A 8/20μs |
| Max Reverse Leakage Current | 500μA |
| Voltage - Clamping (Max) @ Ipp | 59V |
| Clamping Voltage | 59V |
| Peak Pulse Current | 68A |
| Max Surge Current | 68A |
| Peak Pulse Power | 600W |
| Direction | Unidirectional |
| Test Current | 1mA |
| Capacitance @ Frequency | 1000pF @ 1MHz |
| Reverse Breakdown Voltage | 31.4V |
| Max Breakdown Voltage | 34.7V |
| Number of Unidirectional Channels | 1 |
| Diameter | 3.6mm |
| Height | 3.53mm |
| Length | 6.75mm |
| Width | 3.53mm |
| REACH SVHC | No SVHC |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
The following figure is P6KE33A Functional Block Diagram.
Functional Block Diagram

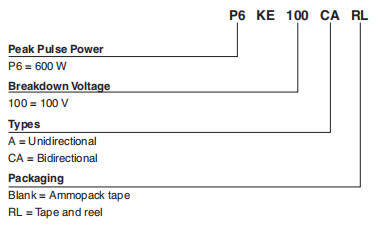

The following shows P6KE33A Ordering Information Scheme.
Ordering Information Scheme

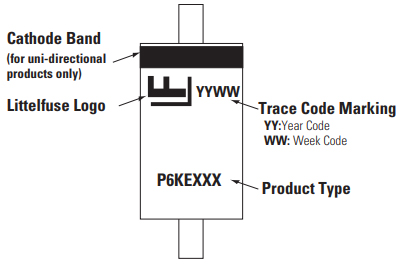

The following figure is P6KE33A Part Marking System.
Part Marking System
| Part Number | Description | Manufacturer |
| P6KE33R0GDIODES | TVS DIODE | Taiwan Semiconductor Manufacturing Company Limited |
| P6KE33-T3DIODES | Trans Voltage Suppressor Diode, 600W, 26.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 | Sensitron Semiconductors |
| P6KE33ABKDIODES | Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon, DO-15, DO-15, 2 PIN | Central Semiconductor Corp |
| P6KE33-54DIODES | Trans Voltage Suppressor Diode, 600W, 26.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC, DO-214AC, 2 PIN | Vishay Semiconductors |
| P6KE33B0GDIODES | TVS DIODE | Taiwan Semiconductor Manufacturing Company Limited |
| P6KA33/4-E3DIODES | DIODE 600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AC, PLASTIC, DO-15, 2 PIN, Transient Suppressor | Vishay Semiconductors |
| P6KE33-T13DIODES | Trans Voltage Suppressor Diode, 600W, 26.8V V(RWM), Unidirectional, 1 Element, Silicon, | ProTek Devices |
| P6KA33A-4-E3DIODES | DIODE 600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AC, PLASTIC, DO-15, 2 PIN, Transient Suppressor | Vishay Semiconductors |
| P6KE33-AU_R2_000A1DIODES | Trans Voltage Suppressor Diode, 600W, 26.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, | PanJit Semiconductor |
| P6KE33_R2_10001DIODES | Trans Voltage Suppressor Diode, 600W, 26.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, | PanJit Semiconductor |
• The Protection of I/O
• Interfaces, VCC Bus and Other Vulnerable Circuits used in Telecom
• Computer
• Industrial
• Consumer Electronic Applications
● Epoxy meets UL94 , V0
● Lead-free package
ST offers these devices in several grades of ECOPACK® packages to meet environmental requirements, depending on their level of environmental compliance. ST owns the trademark ECOPACK®.

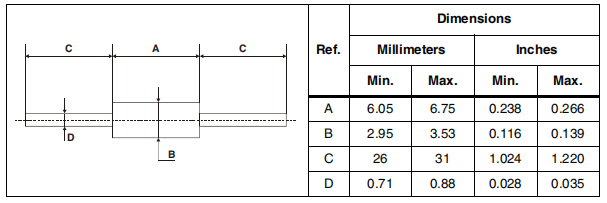

Package
STMicroelectronics is a leading global independent semiconductor firm that develops and delivers semiconductor solutions for a wide range of microelectronics applications. The Company is at the forefront of System-on-Chip (SoC) technology, and its products play a major role in supporting today's convergence trends, thanks to an unparalleled mix of silicon and system expertise, manufacturing capabilities, Intellectual Property (IP) portfolio, and strategic partners.
