L293DNE Description

The L293DNE is a triple half-H driver with a high current output. At voltages ranging from 4.5V to 36V, the L293DNE is designed to generate bidirectional driving currents of up to 600mA

      In positive supply applications, the device is designed to drive inductive loads like relayssolenoids, dc, and bipolar stepping motors, as well as another high current/high voltage loads. TTL compatibility is present on all inputs.

Each output has a Darlington transistor sink and a pseudo-Darlington source, making it a complete totem-pole drive circuit. Drivers are enabled in pairs, with 1,2EN enabling drivers 1 and 2 and 3,4EN enabling drivers 3 and 4.

       The linked drivers are activated when the enable input is high, and their outputs are active and in phase with their inputs. Those drivers are disabled and their outputs are off and in the high impedance state when the enable input is low. Each pair of drivers comprises a full-H (or bridge) reversible drive ideal for solenoid or motor applications with the necessary data inputs.



L293DNE CAD Models

Symbol

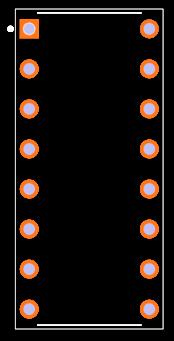

Footprint

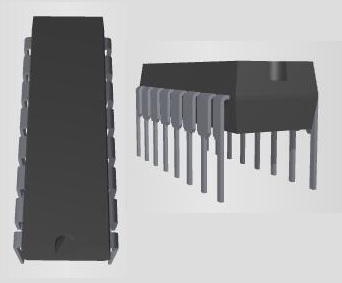

3D Models

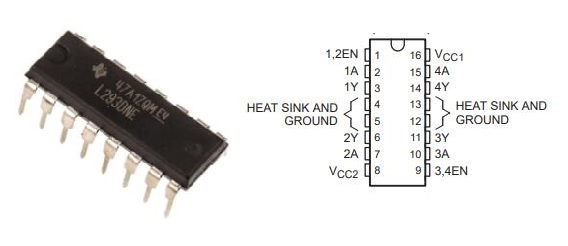

L293DNE Pinout

L293DNE Features

  • Separate Input logic Supply

  • Internal ESD Protection

  • Thermal Shutdown

  • High noise immunity inputs

  • Output current 600mA per channel

  • Output clamp diodes for inductive transient suppression

Specifications

Attribute Value
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Package / Case 16-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Surface Mount
Number of Pins 16
Weight 670.01263mg
Voltage Rated 20V
Packaging Tube
Operating Temperature 0°C~70°C TA
Tolerance 10%
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Resistance 800mOhm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications General Purpose
Capacitance 22μF
Voltage - Rated DC 20V
Voltage - Supply 4.5V~36V
Terminal Position DUAL
Supply Voltage 5V
Base Part Number L293
Function Driver - Fully Integrated, Control and Power Stage
Attribute Value
Number of Outputs 4
Case Code (Metric) 7343
Case Code (Imperial) 2917
Output Voltage 36V
ESR (Equivalent Series Resistance) 800mOhm
Interface Parallel
Operating Supply Current 24mA
Output Configuration Half Bridge (4)
Logic Function AND
Output Polarity TRUE
Voltage - Load 4.5V~36V
Driver Number of Bits 4
Output Peak Current Limit-Nom 1.2A
Supply Voltage1-Nom 24V
Turn Off Time 0.8 µs
Built-in Protections TRANSIENT; THERMAL
Motor Type - AC, DC Brushed DC
Motor Type - Stepper Bipolar
Width 6.35mm
Length 19.8mm
Height 5.08mm
Thickness 4.57mm
RoHS Status ROHS3 Compliant
Radiation Hardening No
REACH SVHC No SVHC
Lead Free Lead Free

L293DNE Applications

1. Stepper Motor Drivers

2. DC Motor Drivers

3. Latching Relay Drivers

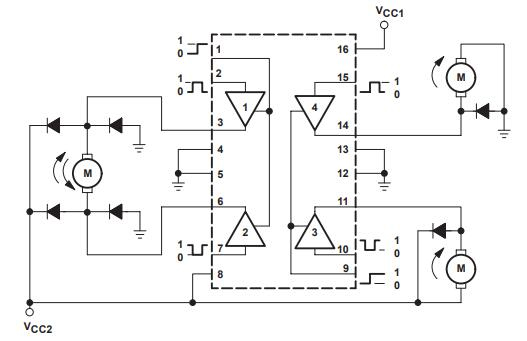

L293DNE Block Diagram

L293DNE Circuit

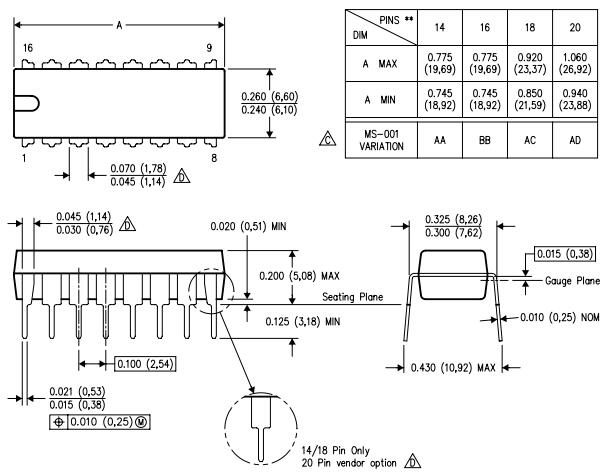

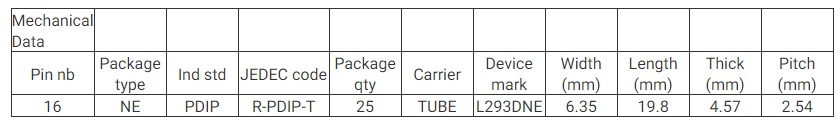

L293DNE Package



L293DNE Manufacturer

Texas Instruments Inc. (TI) is an American technology company that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. Its headquarters are in Dallas, Texas, United States. TI is one of the top ten semiconductor companies worldwide, based on sales volume. Texas Instruments's focus is on developing analog chips and embedded processors, which account for more than 80of its revenue. TI also produces TI digital light processing (DLP) technology and education technology products including calculatorsmicrocontrollers, and multi-core processors.

L293D vs L298N

The differences between L293D and L298N are following:

1. L293D Drivers Operate at 4.5V to 36V whereas  L298N can be Operates at up to 46V.

2. Maximum 600mA Current can be drawn through both channels of L293D whereas L298N Motor Driver can draw up to        2A from both channels.

3. L293 is a quadruple motor driver that uses a half-H driver while L298 is a dual full-H driver, i.e, in L293 all four input-output lines are independent while in L298, a half-H driver cannot be used independently, only a full H driver has to be used.

4. As L293 output current for each channel is 650mA whereas it is 2A for L298. Hence, the heat sink is provided in L298 motor drivers.

5.  EMFs are provided internally in L293D but must be provided externally in L298.

6. L293D is suitable for small current drawing motors like BO motorDC geared motors up to 500 RPM, and small stepper motors which take less current up to 600mA at their highest torque rating. Whereas L298N has the advantage of higher output current up to 2A and therefore it is suitable for high torque and high RPM motors like Johnson motors and high torque DC Geared motors.

Datasheet PDF

Documents

Download datasheets and manufacturer documentation for

Frequently Asked Questions

FAQ

How does an L293D work?
The L293D IC receives signals from the microprocessor and transmits the relative signal to the motors. It has two voltage pins, one of which is used to draw current for the working of the L293D and the other is used to apply voltage to the motors.
How many motors can be controlled using L293D?
Two DC motors. The L293D is a 16-pin Motor Driver IC that can control up to two DC motors simultaneously, in any direction.
How many motors can be controlled using L293D?
Two DC motors. The L293D is a 16-pin Motor Driver IC that can control up to two DC motors simultaneously, in any direction.
Which is better L293D vs L298N?
L293D Drivers Operate at 4.5V to 36V whereas L298N can be Operates at up to 46V. Maximum 600mA Current can be drawn through both channels of L293D whereas L298N Motor Driver can draw up to 2A from both channels.
How do you use the L293D motor driver Arduino tutorial?
Connect Vcc1 pin to 5V output on Arduino. Make sure you common all the grounds in the circuit. Now, the input and enable pins(ENA, IN1, IN2, IN3, IN4, and ENB) of the L293D IC are connected to six Arduino digital output pins(9, 8, 7, 5, 4, and 3). Note that the Arduino output pins 9 and 3 are both PWM-enabled.
