Buffer Gate
IC BUF NON-INVERT 5.5V SC70-5
For industrial, portable, telecom, and automotive applications, the SN74LV1T125DCKR is a low voltage CMOS gate logic that operates across a larger voltage range. This article mainly introduces Package, Pinout, Datasheet and other detailed information about Texas Instruments SN74LV1T125DCKR.
For industrial, portable, telecom, and automotive applications, the SN74LV1T125DCKR is a low voltage CMOS gate logic that operates across a larger voltage range. The output level is related to the supply voltage and can accommodate CMOS levels of 1.8V/2.5V/3.3V/5V.
The input is built with a lower threshold circuit to match 1.8V input logic at VCC = 3.3V and can be used in level up translation from 1.8V to 3.3V. Down translation (e.g. 3.3V to 2.5V output at VCC = 2.5V) is also possible thanks to the 5V tolerant input pins. The VCC range of 1.8V to 5.5V allows for the production of desired output levels for controllers or processors.
To prevent line reflections, overshoot, and undershoot produced by high-drive outputs, the SN74LV1T125DCKR is designed with a current-drive capability of 8 mA.

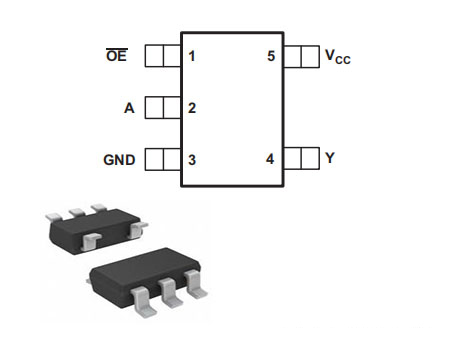

Pinout
| Pin Number | Pin Name | Description |
| 1 | OE | OE Enable/Input |
| 2 | A | Input |
| 3 | GND | Ground |
| 4 | Y | Output |
| 5 | VCC | Power pin |

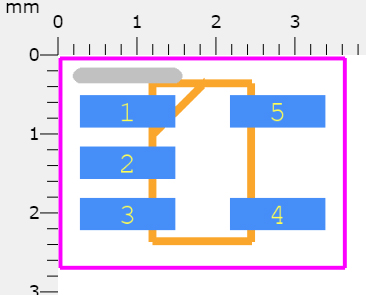

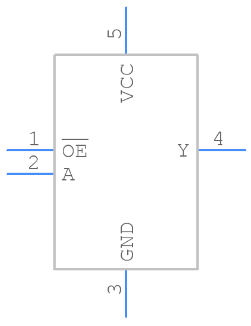

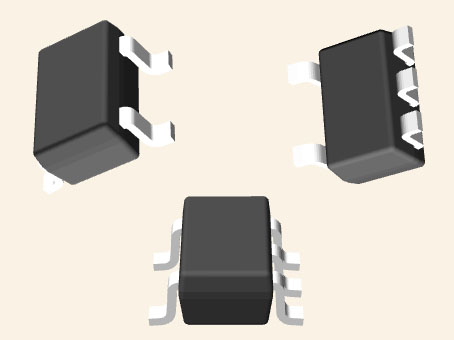

The following figures are SN74LV1T125DCKR Symbol, Footprint and 3D Model.
Symbol
Footprint
3D Model
• Single-Supply Voltage Translator at 5.0/3.3/2.5/1.8V VCC
• Operating Range of 1.8V to 5.5V
• Up Translation
– 1.2V to 1.8V at 1.8V VCC
– 1.5V to 2.5V at 2.5V VCC
– 1.8V to 3.3V at 3.3V VCC
– 3.3V to 5.0V at 5.0VVCC
• Down Translation
– 3.3V to 1.8V at 1.8V VCC
– 3.3V to 2.5V at 2.5V VCC
– 5.0V to 3.3V at 3.3V VCC
• Logic Output is Referenced to VCC
• Output Drive
– 8.0mA Output Drive at 5.0V
– 7.0mA Output Drive at 3.3V
– 3.0mA Output Drive at 1.8V
• Characterized up to 50MHz at 3.3V VCC
• 5.0V Tolerance on Input Pins
• –40°C to 125°C Operating Temperature Range
• Latch-Up Performance Exceeds 250mA Per JESD 17
• ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model (A114-B, Class II)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
• Supports Standard Logic Pinouts
• CMOS Output B Compatible with AUP1G and LVC1G Families
| Attribute | Value |
|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) |
| Factory Lead Time | 6 Weeks |
| Contact Plating | Gold |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Number of Pins | 5 |
| Weight | 6.095147mg |
| Operating Temperature | -40°C~125°C TA |
| Packaging | Tape & Reel (TR) |
| Series | 74LV |
| JESD-609 Code | e4 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 5 |
| ECCN Code | EAR99 |
| Packing Method | TR |
| Voltage - Supply | 1.6V~5.5V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Number of Functions | 1 |
| Supply Voltage | 1.8V |
| Base Part Number | 74LV1T125 |
| Output Type | 3-State |
| Polarity | Non-Inverting |
| Attribute | Value |
|---|---|
| Power Supplies | 3.3V |
| Number of Channels | 1 |
| Operating Supply Current | 8mA |
| Load Capacitance | 30pF |
| Number of Ports | 2 |
| Nominal Supply Current | 8mA |
| Number of Bits | 1 |
| Propagation Delay | 16 ns |
| Quiescent Current | 1μA |
| Family | LV/LV-A/LVX/H |
| Logic Function | Inverting |
| Logic Type | Buffer, Non-Inverting |
| Max I(ol) | 0.008 A |
| Prop. Delay@Nom-Sup | 9 ns |
| Control Type | ENABLE LOW |
| Number of Output Lines | 1 |
| Count Direction | UNIDIRECTIONAL |
| Ambient Temperature Range High | 125°C |
| Height | 1.1mm |
| Length | 2mm |
| Width | 1.25mm |
| Thickness | 900μm |
| REACH SVHC | No SVHC |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
The following is SN74LV1T125DCKR Typical Design Examples.

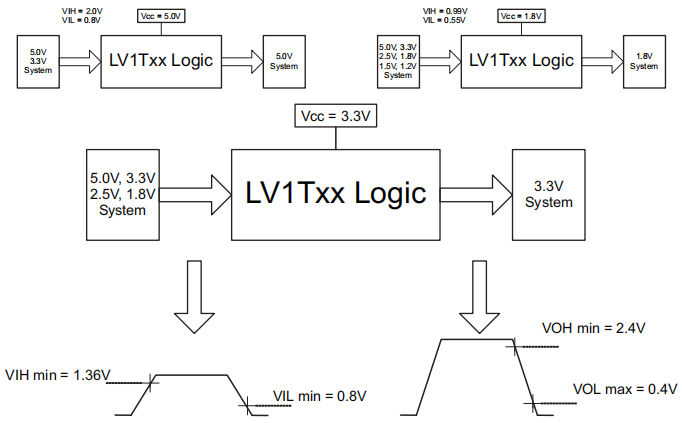

Switching Thresholds for 1.8-V to 3.3-V Translation

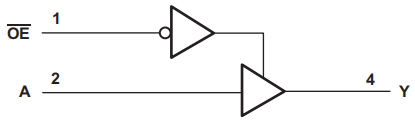

The following is SN74LV1T125DCKR Logic Diagram.
Logic Diagram
| Part Number | Description | Manufacturer |
| 74LVC1G125GW,115LOGIC | 74LVC1G125 - Bus buffer/line driver; 3-state@en-us TSSOP 5-Pin | Nexperia |
| 74LVC1G125SE-7LOGIC | Bus Driver, LVC/LCX/Z Series, 1-Func, 1-Bit, True Output, CMOS, PDSO5, ROHS COMPLIANT, SOT-353, 5 PIN | Diodes Incorporated |
| 74LVC1G125GWLOGIC | Bus Driver, 1-Func, 1-Bit, True Output, CMOS, PDSO5, | Philips Semiconductors |
| CLVC1G125IDCKREPLOGIC | Enhanced product single 1.65-V to 5.5-V buffer with 3-state outputs 5-SC70 -40 to 85 | Texas Instruments |
| 935268720118LOGIC | Bus Driver | Nexperia |
| 935268720125LOGIC | Bus Driver, LVC/LCX/Z Series, 1-Func, 1-Bit, True Output, CMOS, PDSO5 | Nexperia |
| 74LVC1G125GW,118LOGIC | 74LVC1G125 - Bus buffer/line driver; 3-state@en-us TSSOP 5-Pin | Nexperia |
• Industrial controllers
• Telecom
• Portable applications
• Servers
• PC and notebooks
• Automotive

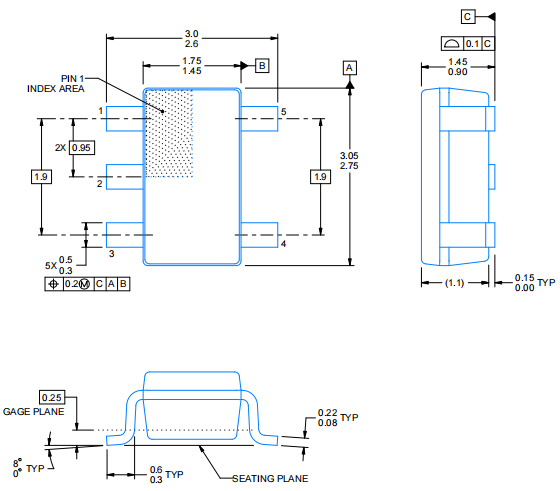

The following figure is SN74LV1T125DCKR Package.
Package
