Schottky Diode Explained
DIODE SCHOTTKY 30V 3A SMC
The SS33 features general-purpose Schottky rectifiers with excellent efficiency and minimal power loss. This article mainly introduces Package, Pinout, Datasheet and other detailed information about ON Semiconductor SS33.
The SS33 features general-purpose Schottky rectifiers with excellent efficiency and minimal power loss. High thermal performance and low electrical resistance are provided by the clip bonded leg structure. These rectifiers are suitable for applications like as freewheeling, secondary rectification, and reverse polarity protection.
The following figures are SS33 Symbol, Footprint and 3D Model.
Symbol
Footprint

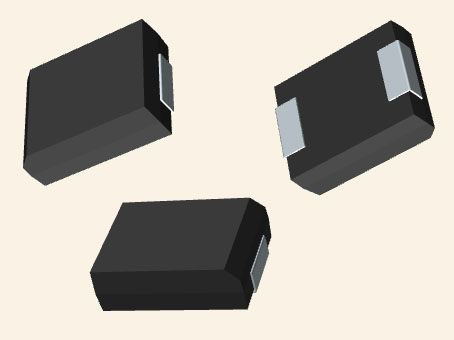

3D Model
• Metal to Silicon Rectifiers , Majority Carrier Conduction
• Low-Forward Voltage Drop
• Easy Pick and Place
• High-Surge Current Capability
ON Semiconductor SS33 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS33.
| Attribute | Value |
|---|---|
| Factory Lead Time | 9 Weeks |
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Package / Case | DO-214AB, SMC |
| Mounting Type | Surface Mount |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Weight | 300mg |
| Diode Element Material | SILICON |
| Number of Elements | 1 |
| Packaging | Tape & Reel (TR) |
| Published | 2013 |
| JESD-609 Code | e3 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 2 |
| ECCN Code | EAR99 |
| Terminal Finish | Tin (Sn) |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Applications | GENERAL PURPOSE |
| HTS Code | 8541.10.00.80 |
| Voltage - Rated DC | 30V |
| Terminal Position | DUAL |
| Terminal Form | C BEND |
| Current Rating | 3A |
| Attribute | Value |
|---|---|
| Base Part Number | SS33 |
| Polarity | Standard |
| Element Configuration | Single |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Diode Type | Schottky |
| Current - Reverse Leakage @ Vr | 500μA @ 30V |
| Output Current | 3A |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 3A |
| Forward Current | 3A |
| Max Reverse Leakage Current | 500μA |
| Operating Temperature - Junction | -55°C~150°C |
| Max Surge Current | 100A |
| Forward Voltage | 500mV |
| Max Reverse Voltage (DC) | 30V |
| Average Rectified Current | 3A |
| Number of Phases | 1 |
| Peak Reverse Current | 20mA |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Peak Non-Repetitive Surge Current | 100A |
| Max Forward Surge Current (Ifsm) | 100A |
| Width | 6.25mm |
| Length | 7.15mm |
| Height | 2.75mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
| Part Number | Description | Manufacturer |
| SS33HR7DIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN | Taiwan Semiconductor |
| SS33R7DIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN | Taiwan Semiconductor |
| SS33R6GDIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN | Taiwan Semiconductor |
| SS33HM3_A/HDIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-214AB, SMC, 2 PIN | Vishay Intertechnologies |
• Low Voltage High Frequency Inverters
• Freewheeling
• DC/DC Converters
• Polarity Protection Applications
The following is SS33 Package.
Package
ON Semiconductor (Nasdaq: ON) is a leader in energy efficiency, enabling clients to cut worldwide energy consumption. To assist design engineers in solving their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications, the company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete, and custom solutions. ON Semiconductor has a world-class supply chain and quality program, as well as a network of manufacturing sites, sales offices, and design centers in important markets across North America, Europe, and Asia Pacific.
