How to use Arducam OV5647 Camera Module for Raspberry Pi
RASPBERRY PI WIDE ANGLE CAMERA M
The OV5647 is OmniVision's first 5-megapixel CMOS image sensor built on proprietary 1.4-micron OmniBSI™ backside illumination pixel architecture. This article is going to explain details about OV5647.
The OV5647 Camera Module is a Raspberry Pi add-on that was specially designed. One of the two little connections on the board's upper surface connects it to the Raspberry Pi. This interface employs the CSI interface, which was created specifically for connecting to cameras. The CSI bus can handle exceptionally high data rates and is only used to transport pixel data.
The camera is connected to the Pi's BCM2835 processor through the CSI bus, a higher-bandwidth link that sends pixel data back to the processor. This bus follows the ribbon cable that connects the camera board to the Raspberry Pi, The camera is compatible with Raspbian, Raspberry Pi's chosen operating system.

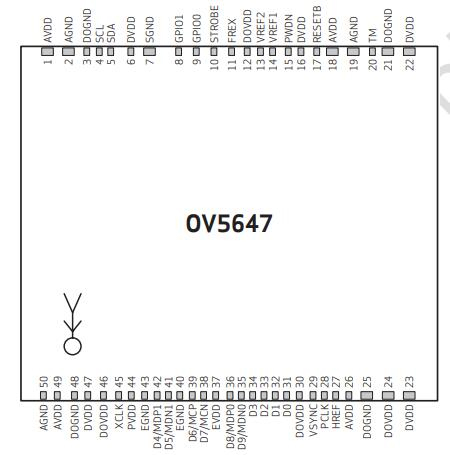

OV5647 Pad Diagram

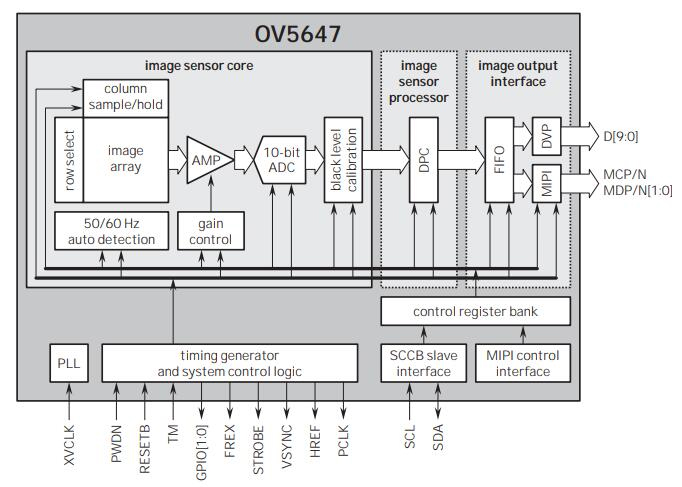

OV5647 Block Diagram
Raspberry Pi Camera, supports all revisions of the Pi
Fisheye Lens, offers a wider field of view
5-megapixel OV5647 sensor
Adjustable focus distance
Camera specifications
CCD size: 1/4inch
Aperture (F) : 2.35
Focal Length: 3.15mm
The angle of view (diagonal): 160 degrees (while other normal cameras are typically 72 degrees)
Sensor best resolution : 1080p
4 screw holes
Used for attachment
Provides 3.3V power output
Supports connecting fill flash LED
Dimension: 25mm x 24mm
Mobile Phones
Digital Still Cameras
PC Multimedia
Cellular PDAs,Toys
Other battery-powered products
Can be used on all Raspberry Pi platforms
A small ribbon connection links the OV5647 to the Raspberry Pi. The camera is connected to the Pi's BCM2835 processor through the CSI bus, a higher-bandwidth link that sends pixel data back to the processor. This bus follows the ribbon cable that connects the camera board to the Raspberry Pi,1.
1 * RPi Night Vision Camera
1 * 15 cm 15 pin FFC adapter
1 * 50 cm 15 pin FFC adapter

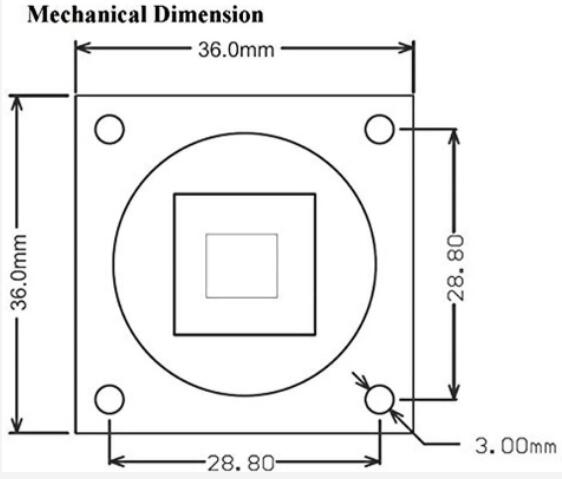

OV5647 Package Information
