SWITCHING CONTROLLER
The TL494 is used for the control circuit of the PWM switching regulator. Where TL494CN can be used? Does TL494CN have alternative parts? What are TL494CN specifications? Today, Magi will tell you the answers.
The TL494 device incorporates all the functions required in the construction of pulse-width modulation (PWM) control circuit on a single chip. Designed primarily for power-supply control, this device offers the flexibility to tailor the power-supply control circuitry to a specific application.
The TL494 device contains two error amplifiers, an on-chip adjustable oscillator, a dead-time control (DTC) comparator, a pulse-steering control flip-flop, a 5-V, 5%-precision regulator, and output-control circuits.

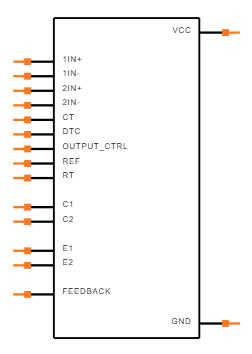

Symbol

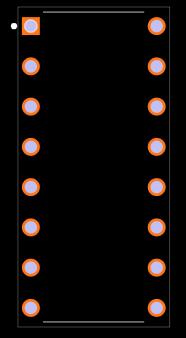

Footprint
3D Models
Uncommitted Outputs for 200-mA Sink or Source Current
Output Control Selects Single-Ended or Push-Pull Operation
Internal Circuitry Prohibits Double Pulse at Either Output
Variable Dead Time Provides Control Over Total Range
Internal Regulator Provides a Stable 5-V Reference Supply With 5% Tolerance
Circuit Architecture Allows Easy Synchronization

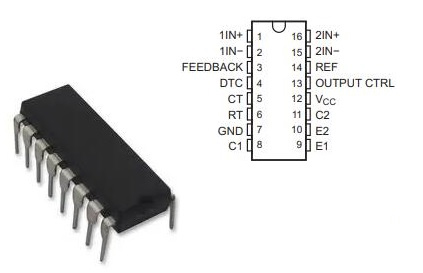

| Pin Number | Pin Name | DESCRIPTION |
| 1 | 1IN+ | Noninverting input to error amplifier 1 |
| 2 | 1IN- | Inverting input to error amplifier 1 |
| 16 | 2IN+ | Noninverting input to error amplifier 2 |
| 15 | 2IN- | Inverting input to error amplifier 2 |
| 8 | C1 | The collector terminal of BJT output 1 |
| 11 | C2 | The collector terminal of BJT output 2 |
| 5 | CT | The capacitor terminal used to set the oscillator frequency |
| 4 | DTC | Dead-time control comparator input |
| 9 | E1 | The emitter terminal of BJT output 1 |
| 10 | E2 | The emitter terminal of BJT output 2 |
| 3 | FEEDBACK | Input pin for feedback |
| 7 | GND | Ground |
| 13 | OUTPUT CTRL | Selects single-ended/parallel output or push-pull operation |
| 14 | REF | The 5-V reference regulator output |
| 6 | RT | The resistor terminal used to set the oscillator frequency |
| 12 | VCC | Positive Supply |

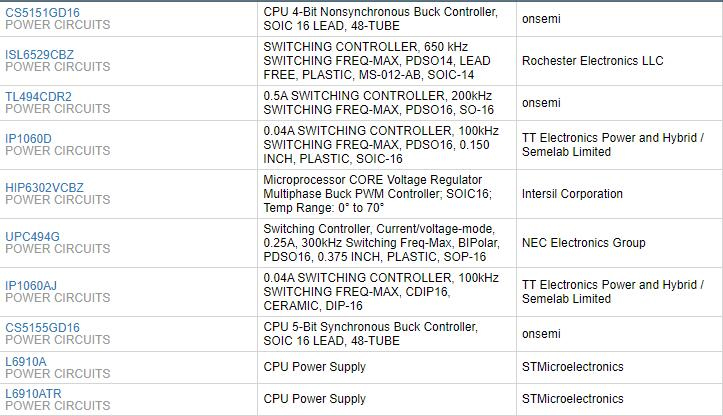

Rochester Electronics, LLC TL494CN technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC TL494CN.
| Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300, 7.62mm) |
| Surface Mount | NO |
| Operating Temperature | 0°C~70°C TA |
| Packaging | Tube |
| JESD-609 Code | e0 |
| Pbfree Code | yes |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 16 |
| ECCN Code | EAR99 |
| Terminal Finish | TIN LEAD |
| Terminal Position | DUAL |
| Peak Reflow Temperature (Cel) | 240 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Number of Outputs | 2 |
| Output Type | Transistor Driver |
| Attribute | Value |
|---|---|
| Input Voltage-Nom | 15V |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Output Configuration | Positive |
| Voltage - Supply (Vcc/Vdd) | 7V~40V |
| Control Features | Dead Time Control, Frequency Control |
| Input Voltage (Min) | 7V |
| Topology | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Control Mode | VOLTAGE-MODE |
| Output Current-Max | 0.5A |
| Frequency - Switching | 1kHz~300kHz |
| Input Voltage (Max) | 40V |
| Control Technique | PULSE WIDTH MODULATION |
| Synchronous Rectifier | No |
| Duty Cycle (Max) | 45% |
| Output Phases | 1 |
| Height Seated (Max) | 4.44mm |
| RoHS Status | Non-RoHS Compliant |
• Desktop PCs
• Microwave Ovens
• Power Supplies: AC/DC, Isolated, With PFC, > 90 W
• Server PSUs
• Solar Micro-Inverters
• Washing Machines: Low-End and High-End
• E-Bikes
• Power Supplies: AC/DC, Isolated, No PFC, < 90 W
• Power: Telecom/Server AC/DC Supplies: Dual Controller: Analog
• Smoke Detectors
• Solar Power Inverters
Texas Instruments Inc. (TI) is an American technology company that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. Its headquarters are in Dallas, Texas, United States. TI is one of the top ten semiconductor companies worldwide, based on sales volume. Texas Instruments's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing (DLP) technology and education technology products including calculators, microcontrollers, and multi-core processors.

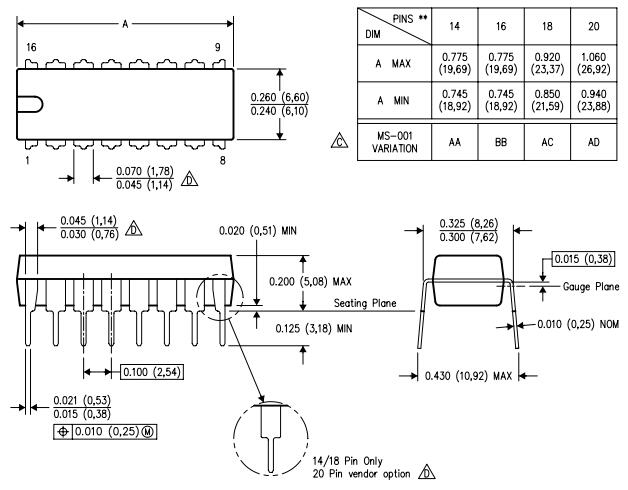

PDIP-16
